TIRE RECYCLING LINE

There is increasing pressure from the government, local councils and the public to reduce the levels of waste tire going to landfill or being exported. Significant recycling opportunities exist for investors to profit from the end products derived from tire recycling. There are more and more large volume applications for the rubber, steel and fibre derived from recycling tire which makes tire recycling an attractive opportunity for the recycling industry.

SPECIFICATIONS
MAIN EQUIPMENTSVIDEOS
VIDEOS

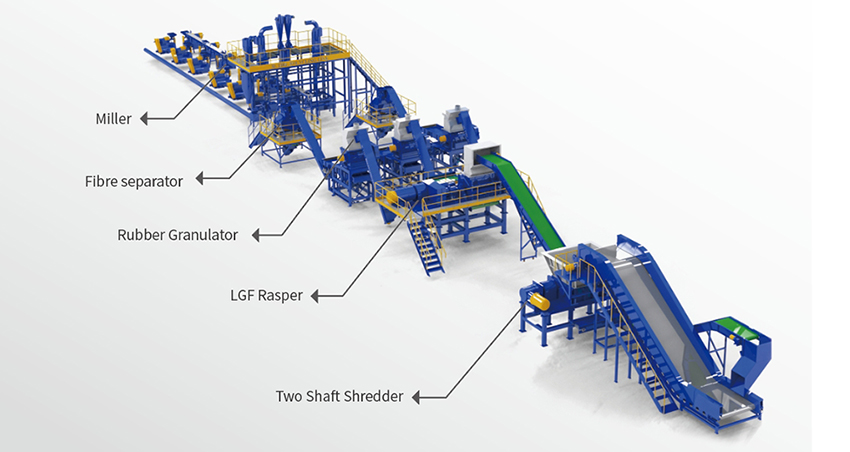

SYSTEM LAYOUT

The Rubber Crumbs, Steel and Fiber can be separated automatically

The rubber powder that recycled from the scrap tires are wildly used in the industries. It is mainly used as modified asphalt for high way construction and it is one of the biggest consumption markets for rubber granula.

TDF （50-60 mm）
Rubber Granule (1- 4 mm)

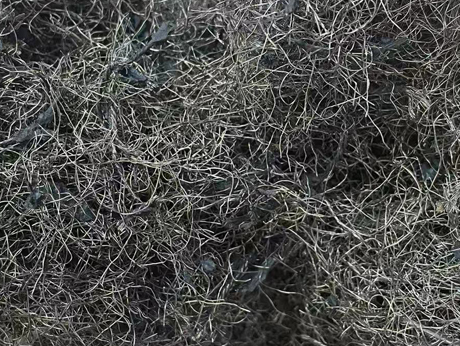

Steel wire

EQUIPMENT CHARACTERISTIC

Capacity	500-10000 kg/h
Scope of Application	Diameter of the tire : 400-3000mm , including car tire/ passage tire/truck tire/OTR tire.
Output Size	5-100 mesh, Can be custom-made
Characteristic	● Complete separation：The Rubber Crumbs、Steel and Fibre can be separated automatically. ● Control system：Adopt PLC control system, it is simple and easy to control and maintain. For example, it is only need 4-6 persons to operate a Tire recycling (beads) production line with 3000kg/h capacity. ● Low energy consumption：The installed power of Tire recycling production (beads) line with capacity 3,000kg/h is about 550kw.
Characteristic of blade	● Long life cycle, High utilization, Multiple maintenance.
Equipment required area	About 400 square meter, 6 meter high
Patented	ZL 2010 2 0602082.4/ZL 2010 2 0602159.8

CASES

產量：6000kg/h

投產時間：2025

Tire recycling line in Algeria
產量：4000kg/h

投產時間：2024

Tire recycling line in Kazakhstan
產量：1000kg/h

投產時間：2000

Tire recycling line in Hungary
產量：8000kg/h

投產時間：2020

Tire recycling line in China
產量：8000kg/h

投產時間：2020

Tire recycling line in USA
產量：3000kg/h

投產時間：2018

Tire recycling line In India
產量：9000kg/h

投產時間：2016

Tire recycling line in Netherlands
產量：5000kg/h

投產時間：2015

Tire recycling line in Saudi Arabia
產量：3500kg/h

投產時間：2011

Belarus.Waste Tyre Recycling Line
產量：3000kg/h

投產時間：2015

USA.Tyre Recycling Plant
產量：5000kg/h

投產時間：2015

Saudi Arabia.Tire recycling Line
產量：3000kg/h

投產時間：2014

China.TDF Recycling Line
產量：3000kg/h

投產時間：2013年

Algeria.Waste Tire Recycling Line
產量：2500kg/h

投產時間：2012

China.Tire Recycling Line
產量：300kg/h

投產時間：2012

Russia.Old Tire recycling Equipment
產量：200kg/h

投產時間：2011

Honduras.Tyre Recycling Plant
產量：500kg/h

投產時間：2010

Indonesia.Tire Recycling Equipment
產量：1000kg/h

投產時間：2010

Brazil.Waste Tire Reycling Line
產量：4500kg/h

投產時間：2009

USA.Tire Recycling Machine
產量：4000kg/h

投產時間：2008

USA.Tire Recycling Line

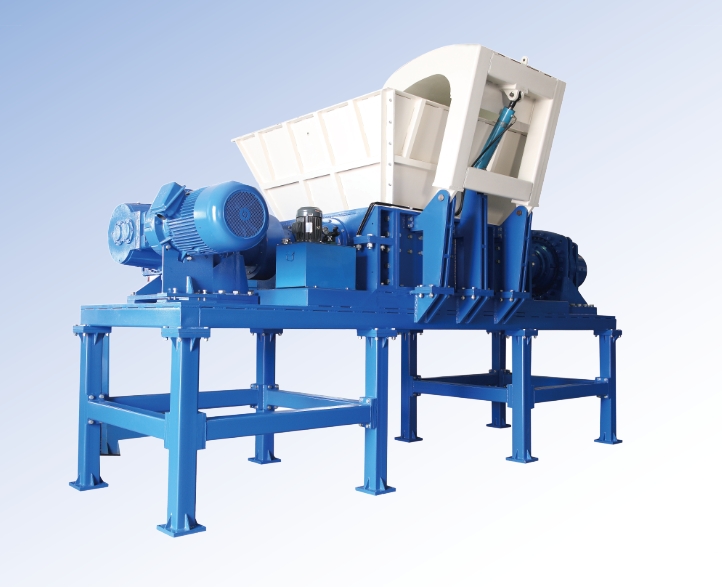

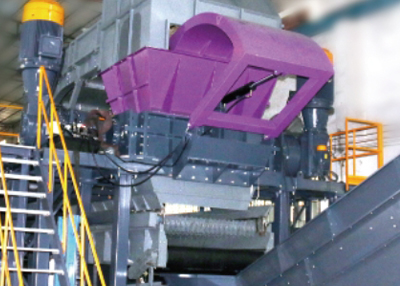

	Two Shaft Shredder Cut the tire into rubber pieces (50 x100 mm) or bigger size rubber pieces which is easier for next step.

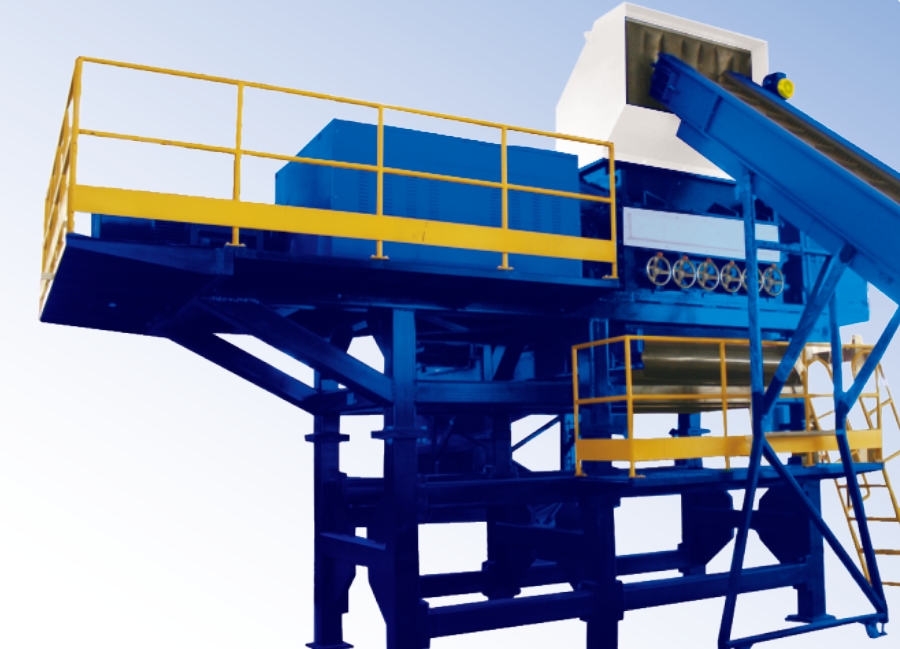

	LGF Rasper Cutting the pre shredded tire chips(size:50x100mm) into rubber crumbs (size:≤25mm).

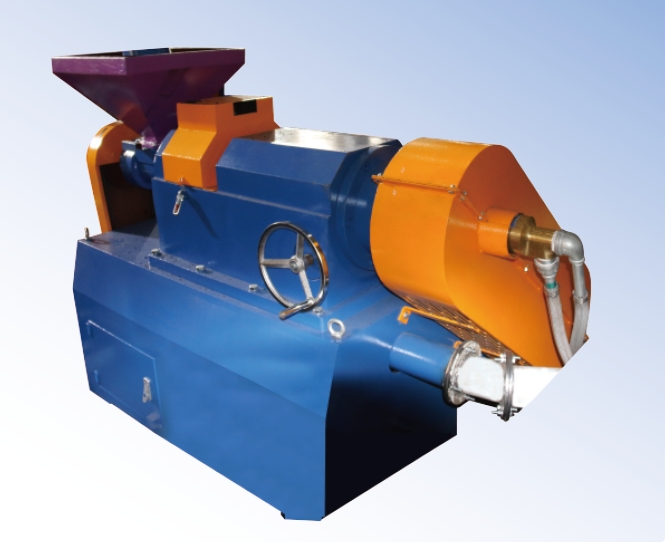

	Rubber Granulator The rubber crusher is to crush the ≤25 mm rubber crumbs from the LGF separator into 0.5-4mm rubber particles.
	Miller Rubber with particles 0.5-4mm is processed into 40-80 mesh.
