SCRAP METAL RECYCLING LINE

The Scrap Metal Crushing & Recycling line is developed by Guangzhou 3E Machinery Company. The car shell and wasted metal (such as wasted iron, aluminium and engine casing ect) will be crushed, separated by the recycling line, after that, the wasted metal could be reused easily. 3E Company has already got the national invention patent and utility model patent for this recycling line.

SPECIFICATIONS
MAIN EQUIPMENTSVIDEOS
VIDEOS

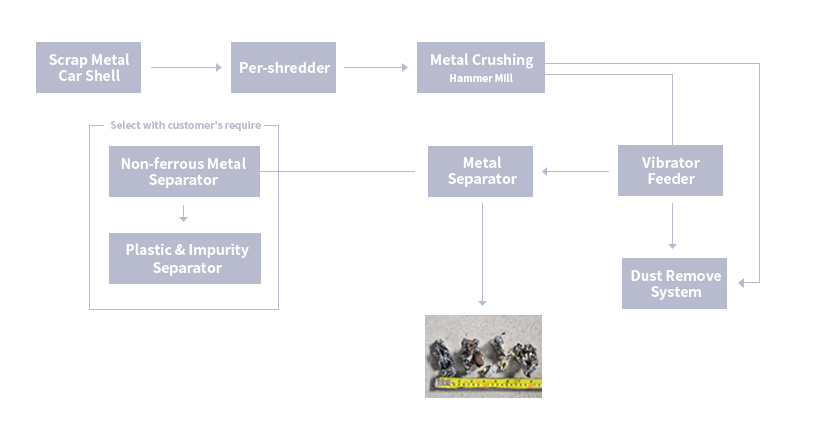

SYSTEM LAYOUT

APPLICATIONS

Scrap Metal
Baled Metal
Baled Aluminum
Metal Drum

EQUIPMENT CHARACTERISTIC

Capacity	10-20 tons/hour
Blades	● Various blades. For thin material, it will use VZ type blade which is suitable for coarse crushing and is good for improving the capacity. The service life for welding blade is longer and the maintenance for welding blades is easier. ● When it recycle thicker material, it could use detachable blade which is easy for installation, and more wear-resisting, easier for maintenance.
Characteristic	● Low power consumption, Small and medium-sized processing, Easy maintenance, low maintenance cost. ● It adopts hydraulic motor instead of gearbox for metal shredder, so the torsion has been improved, it make the shredding process to be steady. At the same time, it reduce the probability about Mechanical damage. ● Siemens PLC control ,dynamic real-time monitor
Patent	ZL 2013 2 0499313.7

Output Size

CASES

產量：3000kg/h

投產時間：2014

Russia.Baled Aluminum Crushing Line
產量：10000kg/h

投產時間：2014

Malaysia.Scrap Metal Recycling Line
產量：10000-15000 kg/h

投產時間：2014

Malaysia.Scrap Metal Recycling Machine
產量：8000 kg/h

投產時間：2008

USA.E-Waste Crushing Line
產量：8000 kg/h

投產時間：2008

USA.Scrap Metal Recycling Line

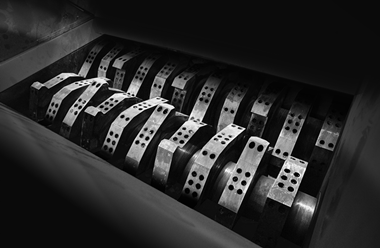

	Two Shaft Shredde The first primary shredding is finished by the special heavy metal shredder. 3E’s series Two Shaft Shredder has two rotors built into the machine that rotate at low speeds, high torque and low noise. Adopt SIENMENS LOGO microcomputer control system with function of start, stop, automatic reverse sensors to protect the machine against over loading and jamming.

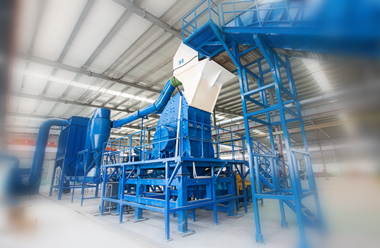

	Scrap Metal Crusher The secondary crushing process is finished by the heavy metal crusher, make the output size suit for the customers requirements.This series metal crusher is easy to operate, efficient and low energy consumption, the accumulation of iron grain density is greater than 1 t/m3.

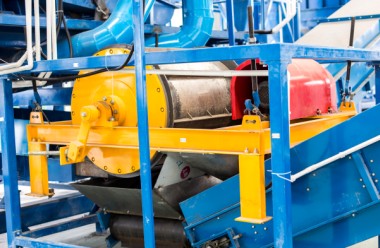

	Magnetic Separator Through the magnetic, it is ffectively separate the ferrous metal.

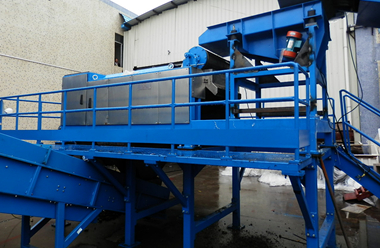

	Eddy Current Separator It is consists of the separator main body and control cabinet, the main body is include optional assembly, drive motor, frame and the cover parts, etc. Main use for separate the nonferrous metals such as the copper and the aluminum from the E-Waste, Waste plastic doors and Windows, Old car and so on the industrial solid wastess chips.

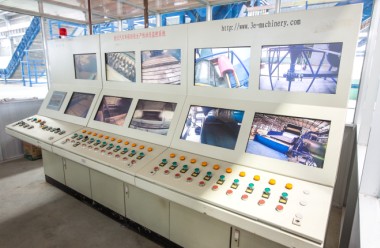

	Central Control System The System adopts Siemens PLC control, real-time monitoring effectively, can effectively control the whole process of the production line. It is easy operation in real time.
