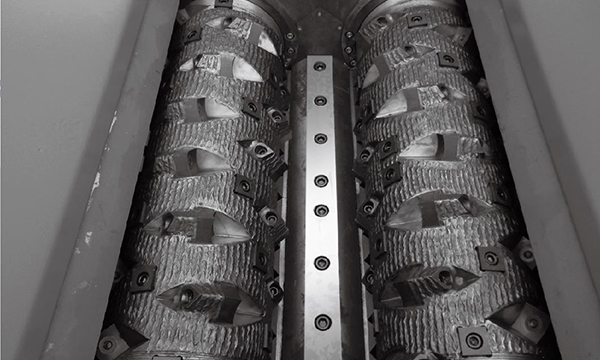

Rotors with different materials
PRODUCT
PRODUCTS
FILM SHREDDER
APPLICATIONS：
- film
- Ton bag, woven bag
- Paper Products
- Soft plastic

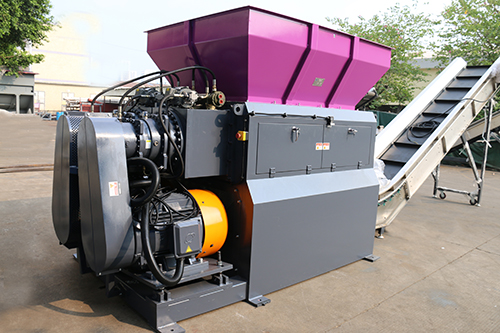

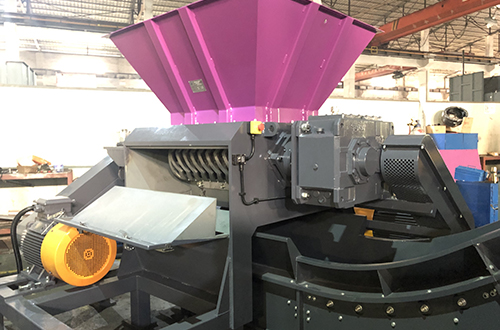

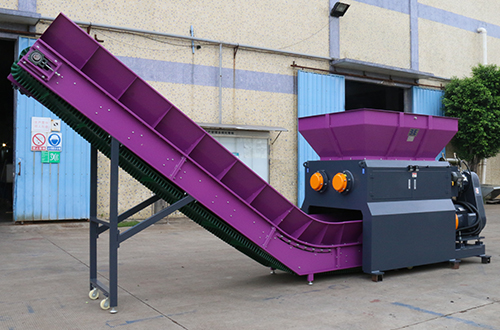

EQUIPMENT INTRODUCTION
model： SWTF series
SWTF series film shredders adopt double film shafts design that rotate a medium speed, low noise and high efficient without pusher. Adopt SIENMENS LOGO microcomputer control system with function of start, stop, automatic reverse sensors to protect the machine against over loading and jamming. It is especially suitable for recycling the medium hardness and soft material, for example film, woven bag, jumbo bag, paper and ect. Aiming at different material, it could use different shaft.
VIDEO
Big Bags/Woven Bags Shredding

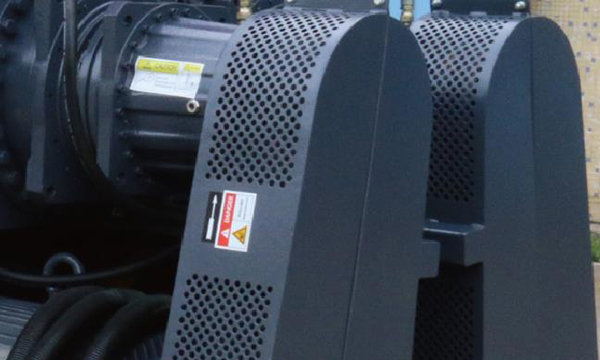

Hardened teeth on the reducer
GEAR BOX

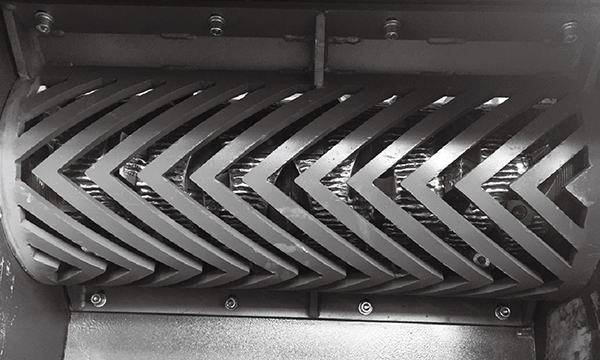

Z-type screen
SCREEN

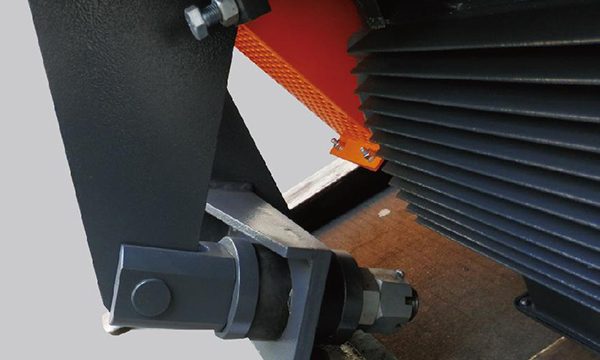

Reduce vibration during shredder
SHOCK ABSORBER

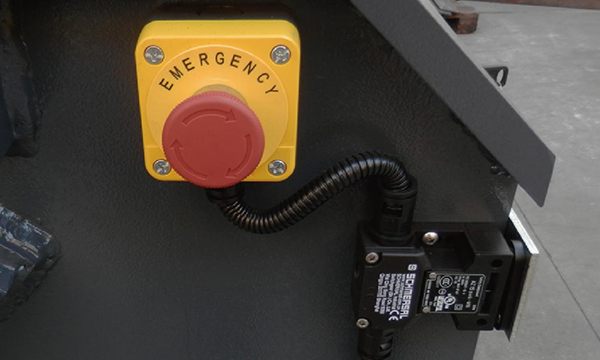

Safety devices in line with CE standard
PLC CONTROL SYSTEM

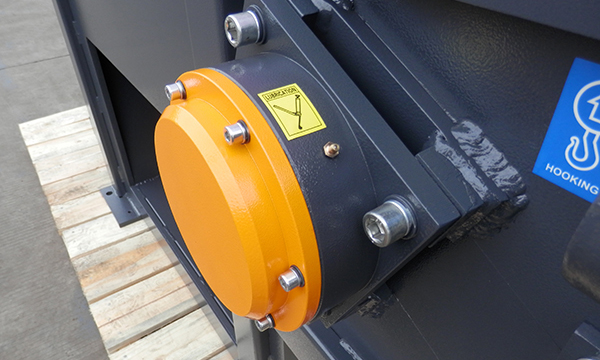

Avoid dust
BEARING SEAT
TECHNICAL FEATURES
- Siemens PLC automatic system is adopted
- Automatic control, start, stop, reverse function
- Double roller design, medium speed, high efficiency, low noise
- Movable knife angle can be changed, multiple use
- Adopt hard tooth surface reducer, safe and stable
- Meet CE standard

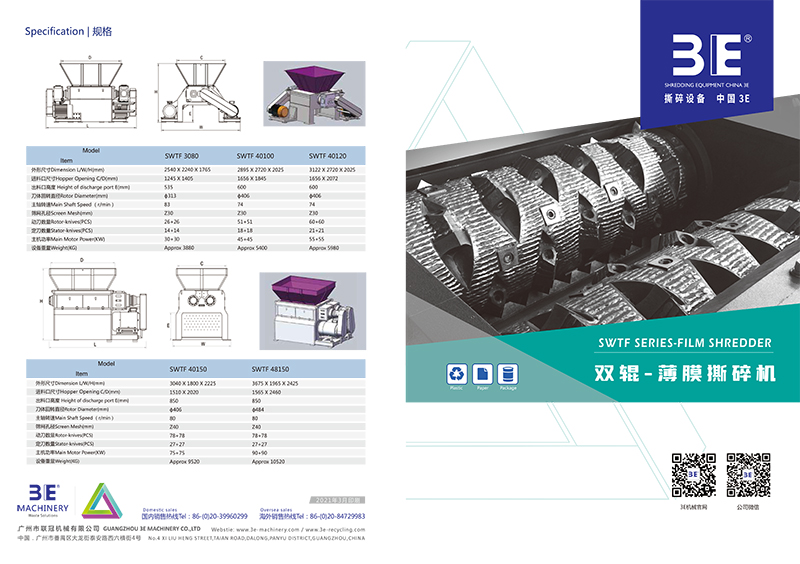

PARAMETERS
MODEL +
|
Model Item |
|
SWTF 3080 | WTF 40100 | SWTF 40120 |
| 外形尺寸 L/W/H(mm) | 2540 X 2240 X 1765 | 2895 X 2720 X 2025 | 3122 X 2720 X 2025 | |
| 粉碎室尺寸 C/D(mm) |
|
1245 X 1405 | 1656 X 1845 | 1656 X 2072 |
| 出料口高度 E(mm) |
|
535 | 600 | 600 |
| 刀體回轉直徑 |
|
?313 | ?406 | ?406 |
| 主軸轉速 (r/min ) |
|
83 | 74 | 74 |
| 篩網孔徑 |
|
Z30 | Z30 | Z30 |
| 動刀數量 (PCS) |
|
26+26 | 51+51 | 63+63 |
| 定刀數量 (PCS) |
|
14+14 | 18+18 | 22+22 |
| 主機功率(KW) |
|
30+30 | 45+45 | 55 + 55 |
| 設備重量(KG) |
|
3880 | 5400 | 5980 |
|
Model Item |
SWTF 40150 | SWTF 48150 |
| 外形尺寸 L/W/H(mm) | 3040 X1800 X 2225 | 3675 X 1965 X 2425 |
| 粉碎室尺寸 C/D(mm) | 1510 X 2020 | 1565 X 2460 |
| 出料口高度 E(mm) | 850 | 850 |
| 刀體回轉直徑 | ?406 | ?484 |
| 主軸轉速 (r/min ) | 80 | 80 |
| 篩網孔徑 | Z40 | Z40 |
| 動刀數量 (PCS) | 78+78 | 90+90 |
| 定刀數量 (PCS) | 25+25 | 25+25 |
| 主機功率(KW) | 75+75 | 90+90 |
| 設備重量(KG) | 9520 |
10520 |
