HORIZONTAL PIPE SHREDDER
APPLICATIONS：
- Pipe – Large Diameter Thick Walled Pipes, Corrugated Pipes etc.
- Bins & Containers – Wheelie Bins, Crates etc.
- Rolled Materials – Carpets, Artificial Grass, Industrial Reels etc.
EQUIPMENT INTRODUCTION
model： WTPH series
3E mechanical horizontal pipe shredding line mainly aims at the shredding, sorting and recycling of PE pipe、wire frame plastic composite pipes, and adopts two-stage shredding to obtain plastic.Plastic is effectively separated from the steel wire, and then the shredding line is equipped with a magnetic separator to completely separate steel wires from the plastic.
VIDEO

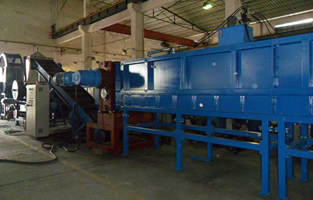

Plastic Pipe Shredding System
Different screen size

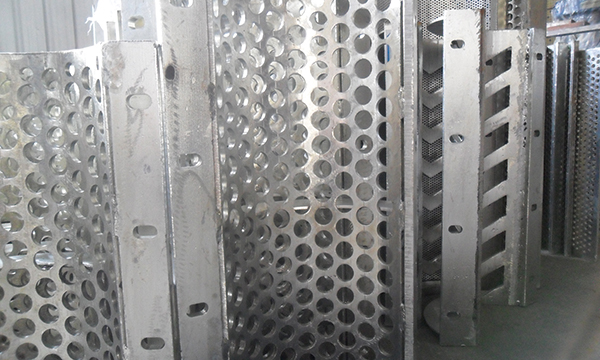

SCREEN
Various rotor configurations availabel

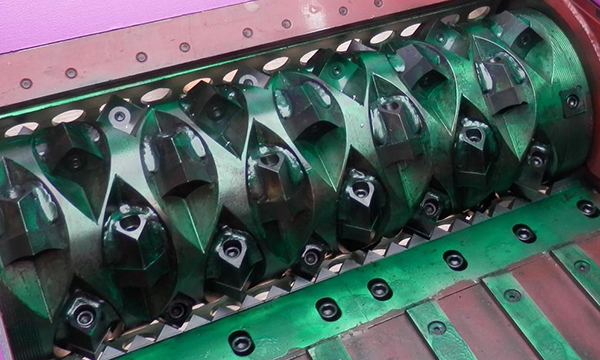

ROTOR
Hardened teeth on the reducer

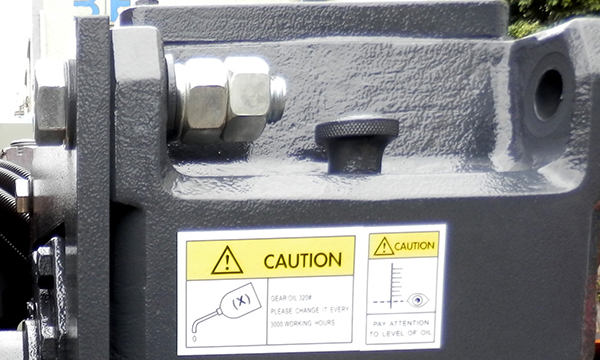

GEAR BOX

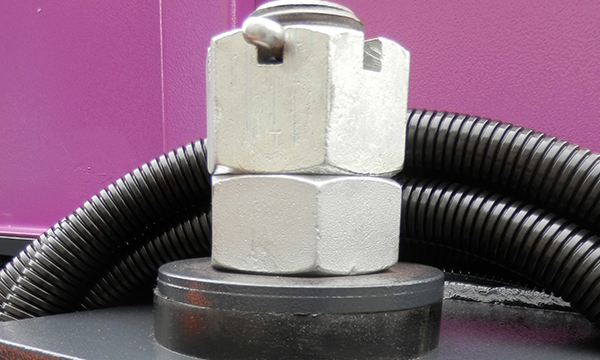

Reduce vibration during shredder
SHOCK ABSORBER
Fitted with wind cooled

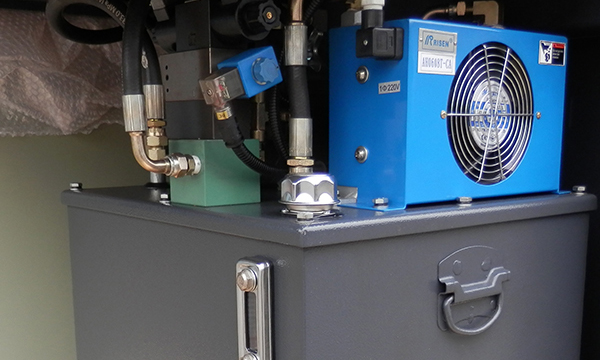

HYDRAULIC STATION
Protect the bearing cover

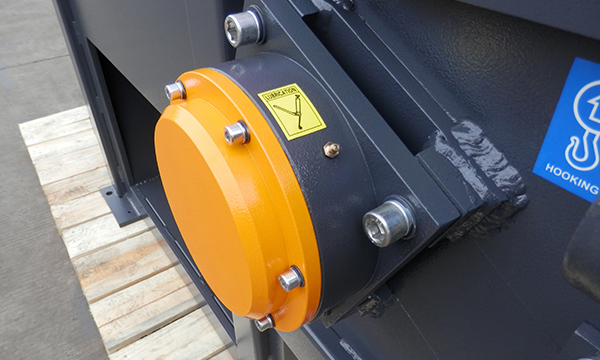

BEARING SEAT
TECHNICAL FEATURES
- Multi-rotor design - the number of rotors can be specified according to the material size
- High shear cutting between rotor and counter knives, suitable for thin wall pipe shredding
- Shock Absorbing Gearboxes reduces Stress on Drive Components

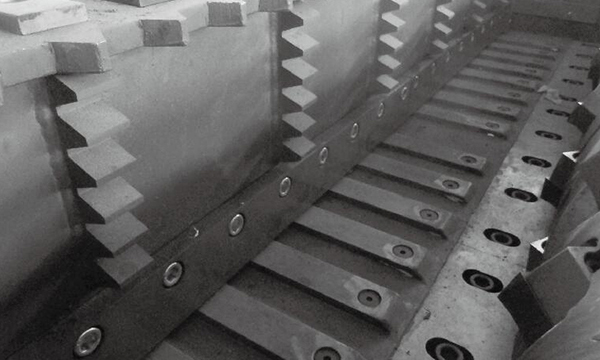

- Long Life Counter Knives can be adjusted to maintain cutter clearance
- Segmented loading chamber floor with Brass Guides
- High strength hydraulic cylinder with reinforced support frame, adjustable ram speed
PARAMETERS
MODEL +
CASES

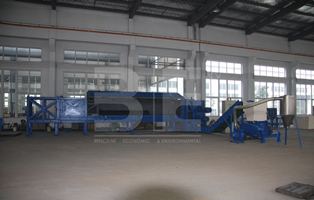

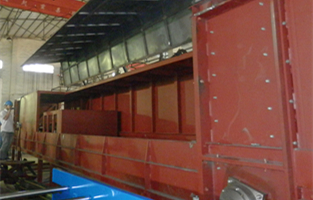

2012.Horizontal Pipe Shredding Line
2012.Horizontal Pipe Shredding Line
2014.Turkey Horizontal Pipe Shredding Line
HORIZONTAL PIPE SHREDDER
|
Item Model |
WTPH4080 |
WTPH40100 |
WTPH40120 |
WTPH40150 |
|---|---|---|---|---|
|

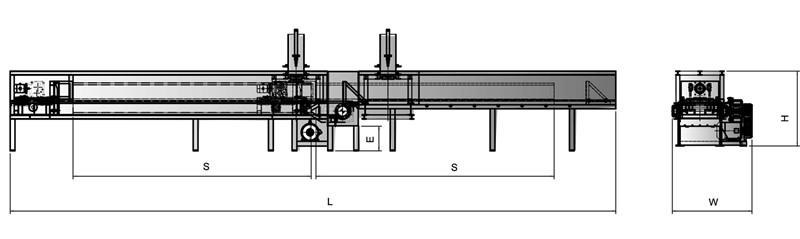

Dimension L/W/H(mm) |
(3500+S)×1810×2600 |
(3500+S)×2160×2900 |
(3500+S)×2210×3300 |
(3500+S)×2700×3400 |
|
Height of discharge port E(mm) |
500 |
500 |
500 |
700 |
|
Cylinder Stroke (mm) |
400 |
600 |
700 |
1200 |
|
Rotor Diameter (mm) |
φ390.3 |
φ390.3 |
φ390.3 |
φ464.8 |
|
Main Shaft Speed (r/min) |
74 |
74 |
74 |
74 |
|
Screen Mesh (mm) |
φ40 |
φ40 |
φ40 |
φ40 |
|
Rotor-knives (pcs) |
42+4 |
54+4 |
66+4 |
90+4 |
|
Stator-knives (pcs) |
2 |
2 |
2 |
3 |
|
Main Motor Power (kw) |
37 |
45 |
37 |
90 |
|
The Cylinder Power (kw) |
3 |
3 |
3 |
4 |
|
Hydraulic Motor Power (kw) |
2.2 |
2.2 |
2.2 |
5.5 |
